Sibo has focused on potentiometers and sensors for 30 years.

R22H
R22H

R22H

1-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Without shaft

  • Screw mount

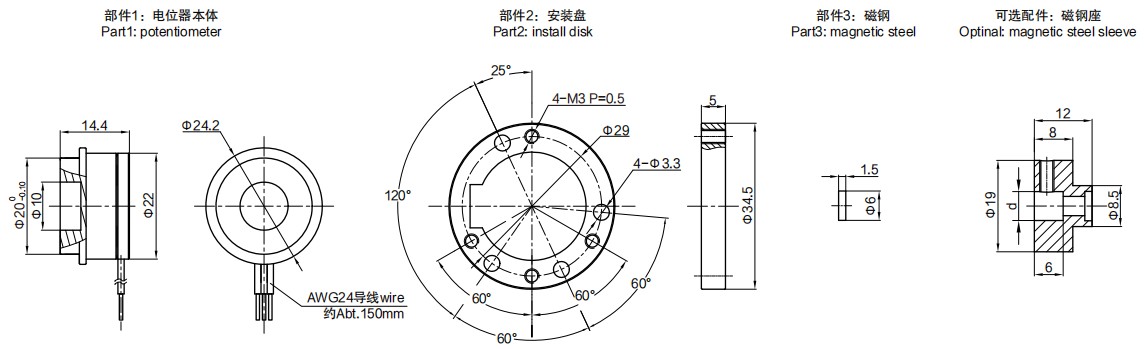

Dimension


Parameter

General Mechanical Specifications

Protection degree

IP67

Mass

Approx.25g

Housing material

Anodized aluminium alloy

Magnetic steel sleeve(Optional)

Brass

Environmental Specifications

Operating temperature range

-40℃~+85℃

Storage temperature range

-40℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R22H 0505 W360(For more input voltage/output signal such as 2410、2405、2442, please check our catalog.)

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Special analog signals

1010:10V applied, 0~10V output, 0305:3.3V applied, 0~5V output, PWM

Other output signals

Incremental, SPI
