Sibo has focused on potentiometers and sensors for 30 years.

CR22E
CR22E

CR22E

1-turn Conductive Plastic POT.

瀏覽量: Time: 2023-02-17

    Characteristics:

  • Conductive plastic

  • Economy version

  • Bushing mount

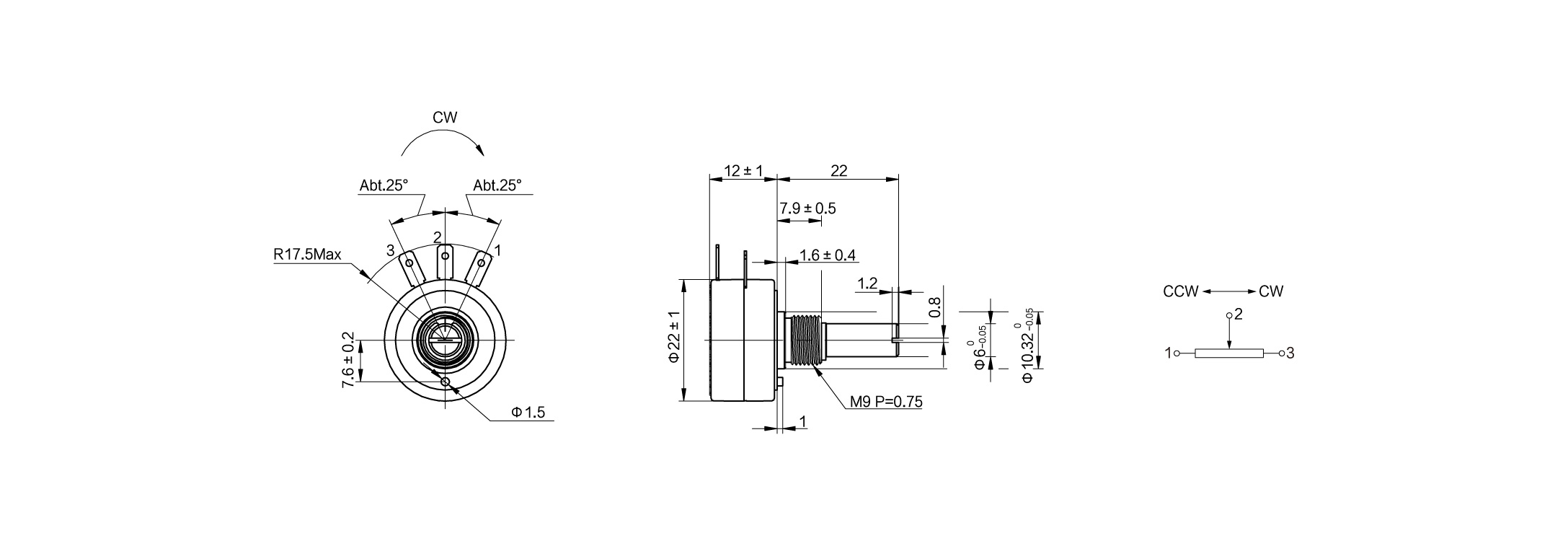

Dimension

240220 CR22E尺寸圖.jpg

Parameter

General Mechanical Specifications

Mechanical angle

360º (Endless)

Protection degree

IP40

Operating torque

<5mN·m

Life expectancy

5,000,000

Mass

Approx.20g

Housing material

Nylon PA6

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Environmental Specifications

Operating temperature range

-50℃~+105℃

Storage temperature range

-50℃~+105℃

Shock

50G 11ms

Vibration

15G/10Hz ~ 2000Hz

General Electrical Specifications

Standard resistance

1K、2K、5K、10K

Resolution

Essentially infinite

Resistance tolerance

±15%

Independent linearity tolerance

Standard ±1.5%, Precision ±1%

Electrical angle

320°±5°

Power rating

1W

Wiper current

μA~1mA(Max.2mA)

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

500V.A.C/1 min

Output smoothness

<0.1%against input voltage

Resistance temperature coefficient

±400P.P.M/°C

Special Specifications Available

Special specifications

Special resistance, Special electrical angle, Special machining on the shaft.
