Sibo has focused on potentiometers and sensors for 30 years.

FCP30A
FCP30A

FCP30A

1-turn Conductive Plastic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Single turn

  • Conductive Plastic

  • Servomount

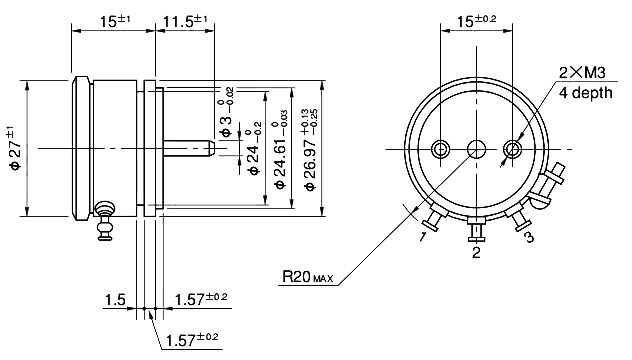

Dimension


Parameter

General Specifications

Standard Resistance Range

1K,2K,5K,10K(Ω)

Special Practical Resistance Values

500,20K,50K,100K(Ω)

Total Resistance Tolerance

Standard Class ±10%(K)

Independent Linearity Tolerance

Standard Class ±1.0%, Precision Class ±0.5%, Super Precision Class±0.2%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance

<2%C.R.V.

Power Rating

1.5W

Electrical Travel

340°±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<2mN·m(20gf·cm)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 25g

Special Specifications Available

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 10mm length), shaft dia. (φ 3.175mm) with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Rotating angle is 320°and stopper strength is 0.3N?m [3kgf?cm]

With stopper

Extra tap (Available up to 1 tap)

Special gangs

Multi-ganged (Available up to 5 gangs, Housing length is extended by 8.5mm per 1 gang)
