Sibo has focused on potentiometers and sensors for 30 years.

FCP22E
FCP22E

FCP22E

1-turn Conductive Plastic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Single turn

  • Conductive Plastic

  • Bushingmount

  • Low-cost Item

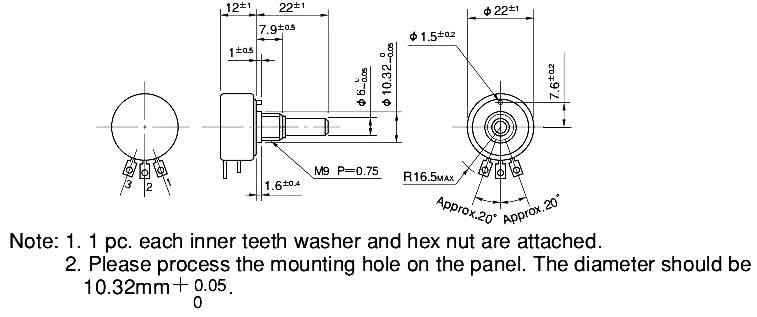

Dimension


Parameter

General Specifications

Standard Resistance Range

1K,2K,5K,10K(Ω)

Special Practical Resistance Values

500,20K,50K,100K(Ω)

Total Resistance Tolerance

Standard Class ±15%(L), Precision Class ±10%(K)

Independent Linearity Tolerance

Standard Class ±1.5%, Precision Class ±1.0%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance

<2%C.R.V.

Power Rating

1.0W

Electrical Travel

320°±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN·m(50gf·cm)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.20g

Special Specifications Available

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 20mm length), shaft dia. (φ 6.35mm) & bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

With stopper

Rotating angle is 320°and stopper strength is 0.6N?m [6kgf?cm]

Special gangs

Multi-ganged (Available up to 10 gangs)
